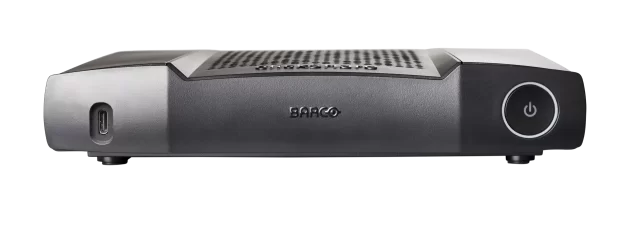

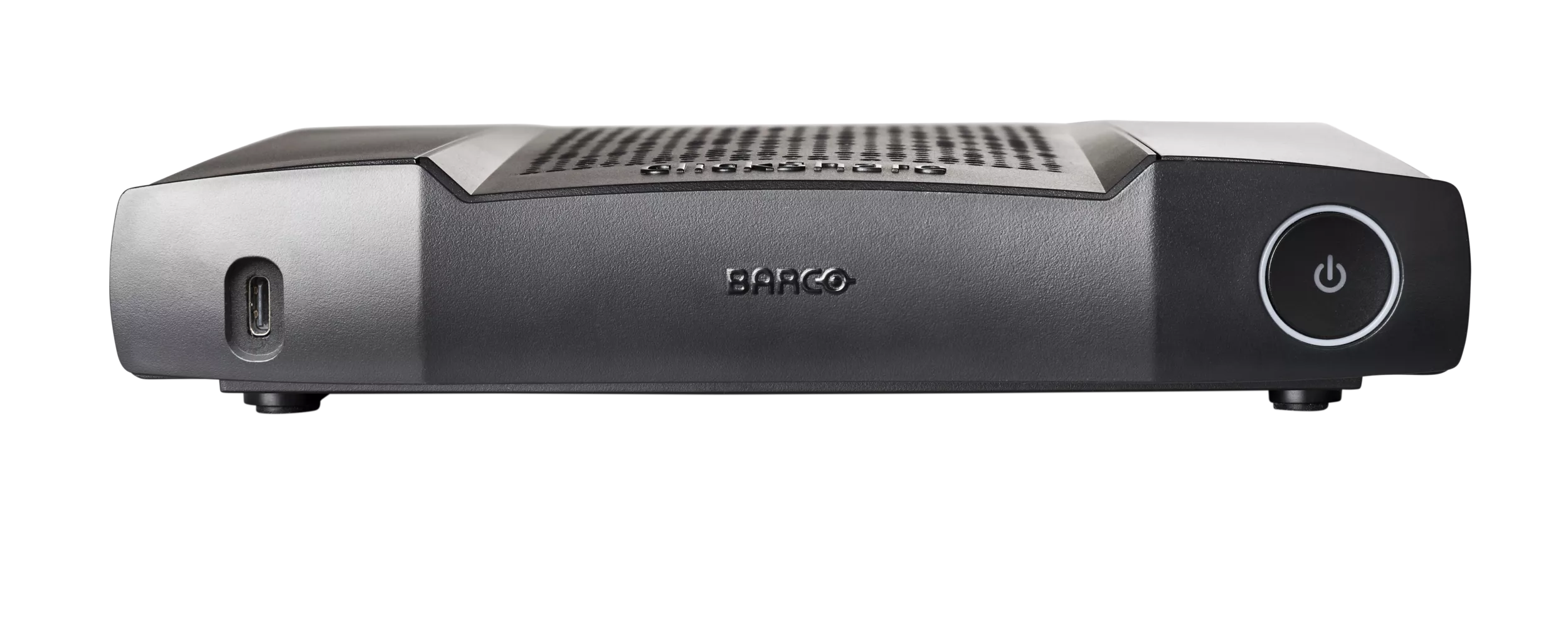

Barco ClickShare CX‑50 2nd generation

$3,450.00

  • Dual screen: people and content side by side on two displays
  • Effortless switching between UC mode and BYOM experience
  • Wired roomdock for 4K content sharing and alternative connectivity
  • Carbon-neutral product
  • 100% secure, encrypted and cloud-managed



SKU: R9861622USB2 Category:

Description

Premium conferencing solution for high-impact rooms

ClickShare CX-50 2nd generation brings flexible wireless conferencing in high-impact meeting spaces and board rooms. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.

Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.

  • Dual screen for an immersive, inclusive experience where you see people and content side by side
  • Use it wirelessly or add a wired connection for top-quality 4K visual output
  • Interactive features like annotation, blackboarding and touchback  for enhanced collaboration
  • Automated start and advanced sharing options for more intuitive meetings

A user-friendly experience and enhanced security

  • Designed for enterprise rollouts, it offers enhanced security and the widest range of network and AV integrations
  • Works seamlessly with a large selection of peripherals and digital signage solutions
  • Use it as a standalone product or integrated into any  meeting room, including Microsoft Teams Room or Zoom Room
  • Switch easily between setups thanks to automatic switching from Unified Communications mode  to Bring Your Own Meeting mode

Specifications

Dimensions (HxWxD)
39mm x 200mm x 202mm
Power supply
Standard 110/220 V AC plug or USB-C (back)
Power consumption
Operational: 74.5W (max)
Standby: 0.27W – Networked standby: 3.7W
Weight
985 gr
General specifications
Operating system
Windows 10 or higher macOS 11 (BigSur) and higher
Android v11 and higher (ClickShare App)
iOS 14 and higher (ClickShare App)
System requirements
For a smooth experience with Microsoft Teams or Zoom
Minimum: Intel i3 dual-core processor / 8GB RAM / OS : Windows 10 latest build or Mojave latest build
Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS latest build
Video outputs
4K UHD (3840*2160) @ 60Hz. HDMI™ 1.4b

4K UHD (3840*2160) @ 60Hz.USB-C DP ALT mode (back)

Video inputs
4k UHD (3840*2160) @30Hz.USB-C DP ALT mode (front)
Audio output
USB, jack, HDMI

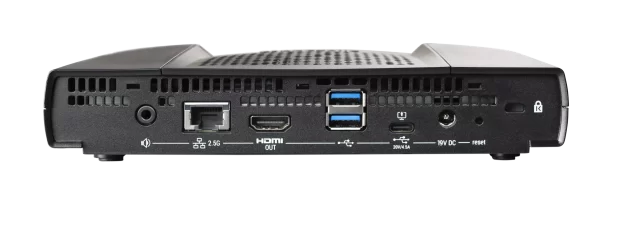

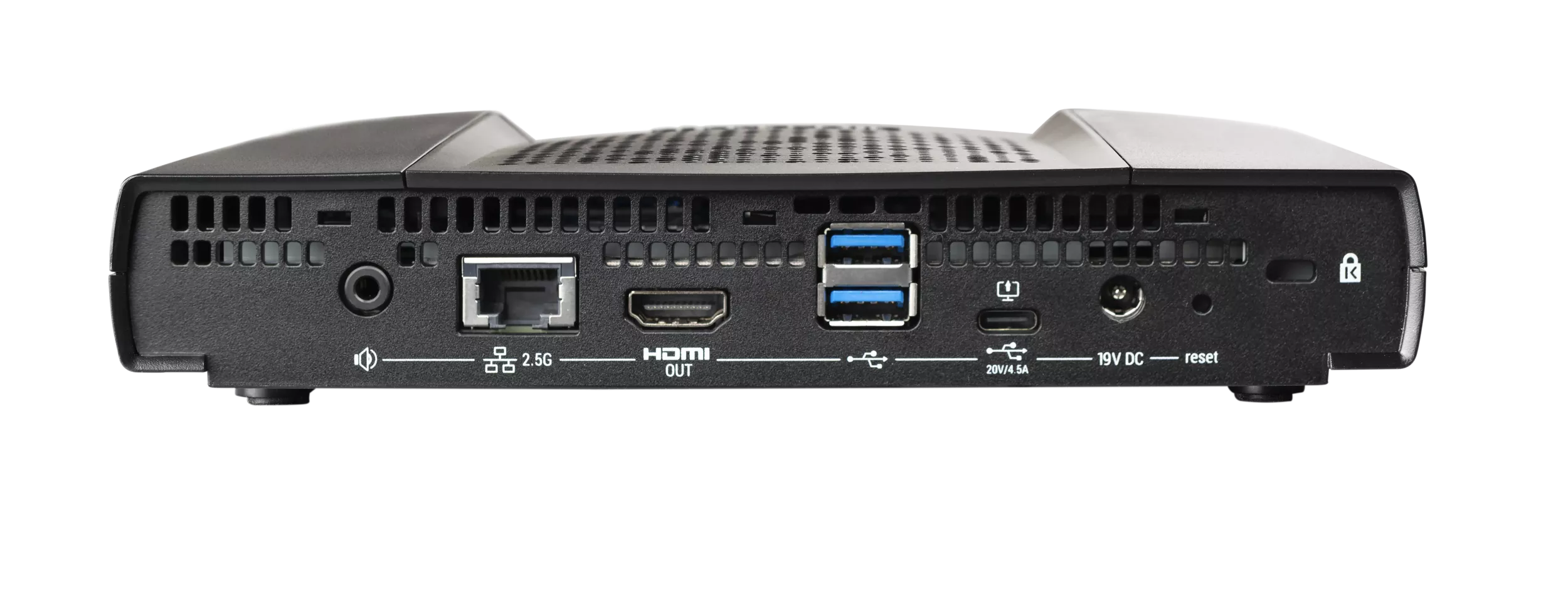

Connections
Front side: 1x USB-C 3.1
Rear side: 1x USB-C 3.1, 2x USB -A 3.1, 1x Ethernet LAN 2.5Gbit, Audio analog line out on jack socket (3.5mm)
ClickShare Buttons
2
ClickShare App
Desktop & Mobile
Native protocols
Airplay, Google Cast, Miracast
Maximum number of simultaneous connections (with Buttons and/or App)
32
Noise Level
Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Authentication protocol
WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Temperature range
Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Touch screen support & Interactivity
Yes
Wireless conferencing
via App or Button
Local view
High quality
Network connection
LAN & WiFi (dual)
Management and reporting
Yes
Warranty
1 year standard. 5 years coverage upon registering via SmartCare
