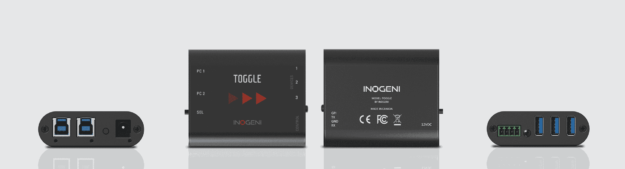

INOGENI TOGGLE USB 3.0 PRO AV Switcher

$485.00

INOGENI’s TOGGLE USB 3.0 PRO AV switcher allows anyone in a conference room to access high-quality USB devices (cameras, microphones) in mere seconds.

Features

The TOGGLE USB 3.0 switcher offers an array of features for a smooth and seamless BYOD or BYOM experience:

  • Three USB 3.0 device ports
  • Automatically switch between two USB 3.0 hosts
  • Compatible with USB 2.0
  • Automatic, manual or remote control
  • RS-232 control
  • GPI control
  • Rugged full-metal enclosure
  • External power supply can provide power to USB 3.0 devices
  • Two USB 3.0 cables included
  • Device configuration via the  INOGENI Control App
  • Firmware upgrade available via the  INOGENI Control App
  • Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Category:

Description

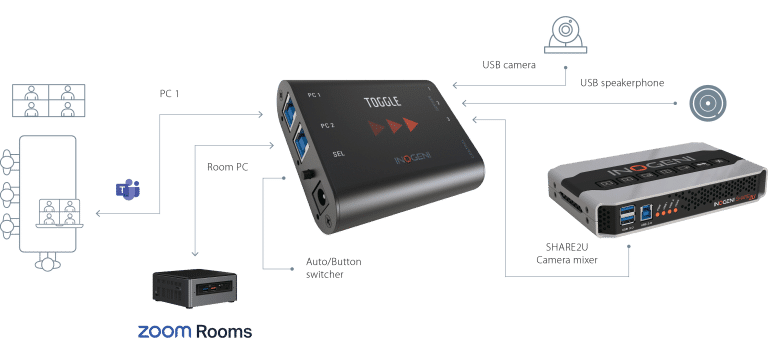

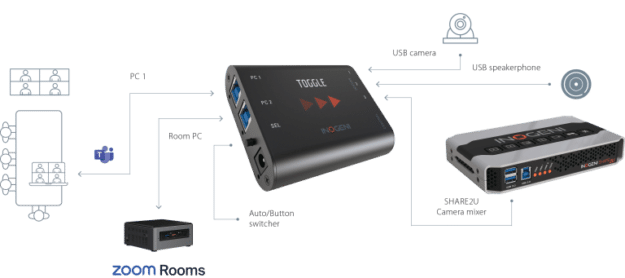

How it works

The TOGGLE USB 3.0 professional switcher can connect to three USB 3.0 devices and switch them between two hosts. It will automatically switch to a laptop when it is connected, and revert back to the conference room’s computer when disconnected. It can also be controlled remotely by RS-232 or GPI.





Specifications

Video input

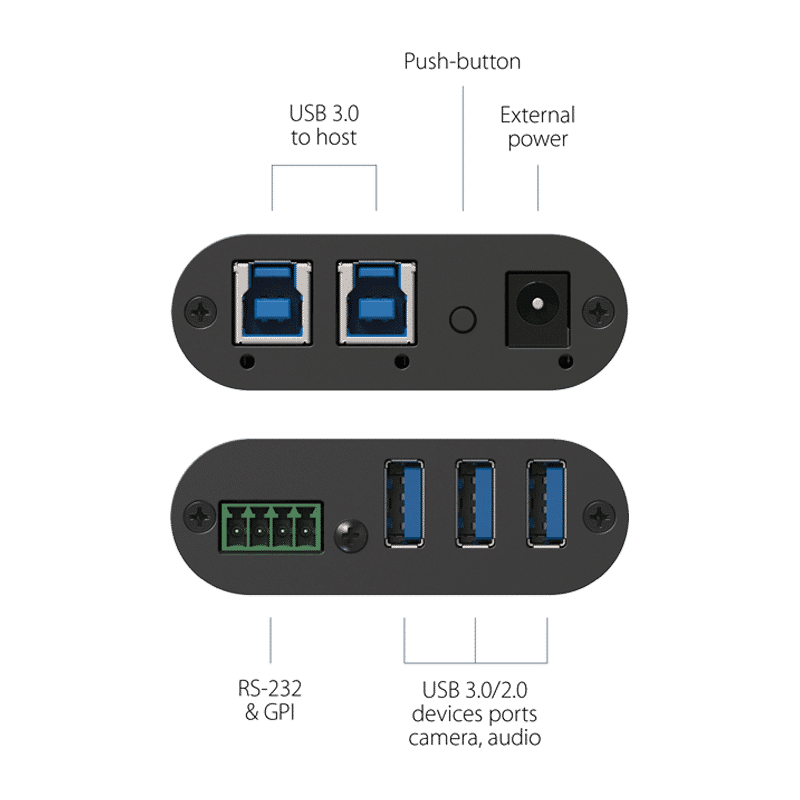

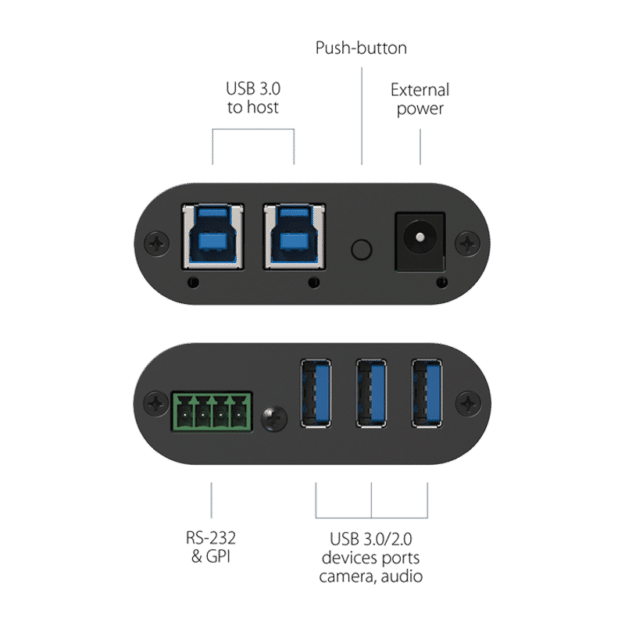

USB device ports Connector & Video Resolutions

3 x Type-A USB 3.0/2.0 compatible

USB host ports Connector & Video Resolutions

2 x Type-B USB 3.0/2.0 compatible

Control

Software

Automatic, manual or remote control. Current configuration is saved onboard.

Device control

RS-232 control

GPI control

Compatibility

Barco ClickShare compatible

Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

Serial interface

Baud rate: 9600 bps For control purpose. See Serial communication protocol section for more details.

Push-button

Physical switch to select host.

GPIN

Contact-closure control. Controlled by open-drain IO (short to ground) or driven IO. Supported voltage range: 0V to +12V max. Voltage threshold is 2.3V.

Device current limit

1.8A shared current limit for all 3 x USB device ports. You can monitor current consumption through RS-232 and our Control App.

Software

Upgrade

Field upgradable through our  INOGENI Control App.

Physical details

Dimensions (W x L x H)

7.0cm x 8.3cm x 2.3cm

2.76” x 3.27” x 0.9”

Power supply

12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

Weight

120 g (0.26 lb)

Package content

2x 3 ft USB 3.0 cables (Type-A to Type-B)

1x RS-232 terminal block adapter
