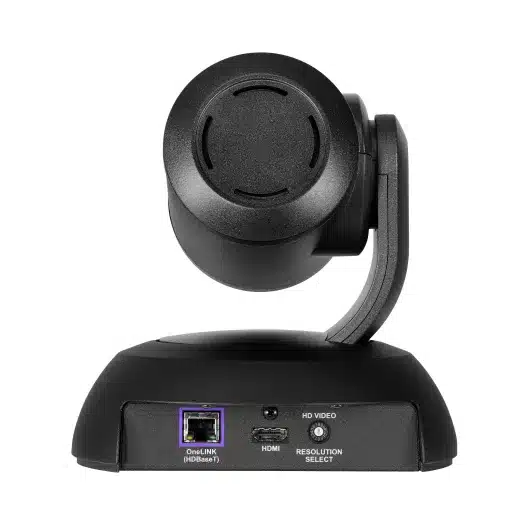

RoboSHOT 12E HDBT

RoboSHOT Elite Series cameras are professional A/V presentation cameras. Simultaneous HDBaseT and IP (H.264) streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view. Available with OneLINK Extension Systems.

Key Features:

  • 12x optical zoom
  • 1/2.5-type Exmor R CMOS sensor
  • Simultaneous HDbaseT, HDMI and IP H.264 streaming
  • Remote IP Management
Category:

Description

Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.



Key Features:

  • 12x optical zoom
  • 1/2.5-type Exmor R CMOS sensor
  • Simultaneous HDbaseT, HDMI and IP H.264 streaming
  • Remote IP Management



This Package Includes:

  • RoboSHOT 12E HDBT camera (black or white)
  • Quick-start card
  • PoE+ Midspan Power Injector
  • Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
  • Vaddio IR Remote Commander

Specifications

Dimensions & Measurements
Depth
6.75 in (17.1 cm)
Distance
328 in (833.1 cm)
Height
6.94 in (17.6 cm)
Operating Temperature
32° to 104°F (0° to 40°C)
Product Weight
4.85 lbs (2.2 kg)
Shipping Dimensions
  • 14″ x 14″ x 18″ (355.6 x 355.6 x 457.2 mm)
  • 20″ x 15″ x 19″ (508 x 381 x 482.6 mm)
Shipping Weight
13-16 lbs (5.9-7.26 kg)
Width
7.05 in (17.9 cm)
Characteristics & Features
3rd Party Control
  • RS232
  • Telnet
Bridged Signal
Audio and Video
Browser-based User Interface for Remote Control
Built-in
Camera Type
PTZ
Color
  • Black
  • White
Compatible With
  • Cisco
  • Polycom
  • Vaddio
Control Method
  • IR Remote
  • Joystick
  • RS232
  • Telnet
  • Touch Screen
  • Web UI
Estimated Room Size
  • Medium Room
  • Small Room
Extension System
  • None
  • with OneLINK Bridge
  • with OneLINK Bridge Express
  • with OneLINK Bridge Express for Cisco
  • with OneLINK Bridge Express for Polycom
  • with OneLINK Bridge for Cisco
  • with OneLINK Bridge for Polycom
  • with OneLINK HDMI
  • with OneLINK HDMI for Cisco
  • with OneLINK HDMI for Polycom
Extension Type
  • Camera
  • Codec
Field of View
70.2° Wide End to 6.8° Tele End
Field of View Wide
Greater than 70
Focus System
  • Auto
  • Manual
Gain
  • Auto
  • Manual
Image Sensor Type
1/2.5-type Exmor R CMOS sensor
Input Ports
  • HDbT
  • Line Level Audio
  • Mic Level Audio
Invertible
Yes
Manufacturer
Vaddio
Max Resolution
1080p 60
Minimum Illumination
1 Lux (F1.6)
OneLINK Bridge adds
  • 328 ft (100m) Power Video Control Extension
  • 3G SDI
  • Audio Mixer
  • HDMI
  • USB 3.0
OneLINK Compatibility
Native
OneLINK HDMI adds
  • 328ft (100M) Power Video Control Extension
  • HDMI
Output Ports
  • 3G SDI
  • Audio
  • HDbT
  • HDMI
  • IP Streaming
  • USB 3.0 Type B
Pan and Tilt Range
  • Pan: ±150°
  • Tilt: +90° to -30°
Pan and Tilt Speed
0.35°/sec – 120°/sec
Pixels
8.51 Megapixel
Power Cord
  • AU Cord
  • EU Cord, UK Cord
  • US Cord
Power Supply
  • 1.36A
  • 12VDC
  • 3.0A
  • 48VDC
  • PoE+ Midspan Power Injector
Power Type
  • OneLINK
  • PoE+
Preset Positions
16 Custom Home Position
PTZ Motors
Silent BLDC Direct Drive Motors
Quick-Connect Compatibility
No
Signal Type
  • 3G SDI
  • Audio
  • HDbT
  • HDMI
  • IP Streaming
  • RS 232
  • USB 3.0
Solution Type
  • Camera Only
  • Camera with Extension
Special Features
With OneLINK Extender
TAA Compliant
Yes
Tri-Sync Motion
Yes
White Balance
  • Auto
  • Manual
  • One Push
Zoom
12x
Certifications & Warranties
Certifications
  • CE
  • Certified for Barco ClickShare Conference
  • FCC
  • HDBaseT
  • TAA
Warranty
3 years
