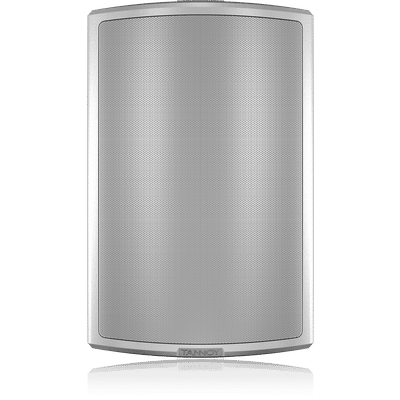

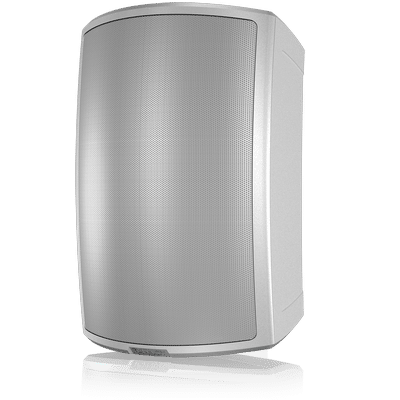

Tannoy AMS 8DC-WH

8″ Dual Concentric Surface-Mount Loudspeaker for Installation Applications (White)

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 90 Watts continuous, 360 Watts peak power
  • 8″ next generation Dual Concentric driver featuring Omnimagnet technology
  • Torus Ogive waveguide for improved high frequency response and directivity
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
  • All components weather resistant to IP65 for outdoor use
  • High temperature resistant ABS enclosure rated at 120°C
  • Semi matt white paint finish fits unobtrusively in any environment

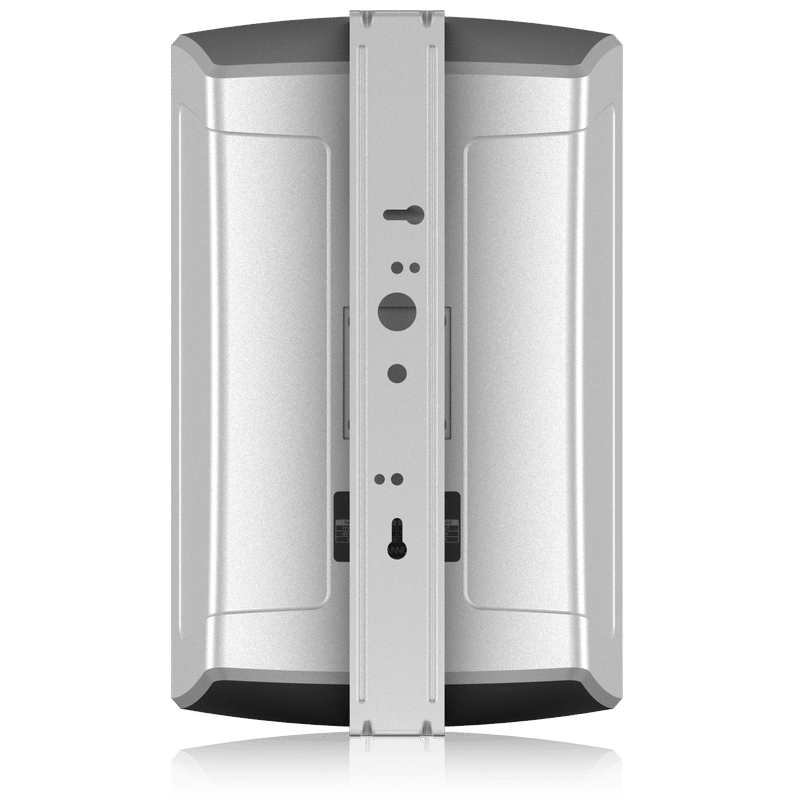

  • Yoke bracket included for ease of installation
  • Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
  • Weatherproof cable gland cover to protect Phoenix* connectors and tap selector switch
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.





Category:

Description

The AMS 8DC-WH is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises our all-new proprietary 8″ Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide to deliver wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. The AMS 8DC-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. AMS 8DC-WH loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from both ceiling and wall mounted TANNOY loudspeakers.

The elegantly styled semi white moulded enclosure blends beautifully into any décor. Additionally the AMS 8DC-WH’s design and performance has achieving an IP65 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

The highly durable and heat resistant ABS enclosure features a white painted finish and comes with an aesthetically pleasing grille. Installation is quick and easy thanks to the included colour-matched yoke mounting bracket – and an optional VARIBALL multi-angle bracket is available separately. An included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 60 W transformer with convenient tap switching.

Performance

Frequency Response (-3 dB) (1) 65 Hz – 30 kHz
Frequency Range (-10 dB) (1) 53 Hz – 40 kHz
System Sensitivity (1 W @ 1 m) (2) 92 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Power Handling Average: 90 W
Programme: 180 W
Peak: 360 W
Recommended Amplifier Power 180 W @ 16 Ohms
Nominal Impedance (Lo, Z) 16 Ohms
Rated Maximum SPL Average: 111 dB
Peak: 117 dB
Transformer Taps (via front rotary switch) 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation
100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

TRANSDUCERS

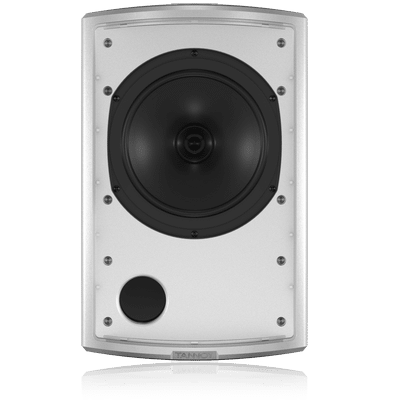

Dual Concentric point source driver 1 x 200 mm (8.0″) Dual Concentric driver, using Omnimagnet technology
Low Frequency 44 mm (1.75″) voice coil, treated multi fiber paper pulp cone
High Frequency 25 mm (1.00″) PEI dome

PHYSICAL

Enclosure ABS
Grille Weather-resistant zinc nickel-plated steel grille
Connectors Removable locking connector with screw terminals
Transformer setting Rotary switch
Dimensions (H x W x D) 409.8 x 260.0 x 306.3 mm (16.13 x 10.24 x 12.06″)
Net Weight (ea) 7.82 kg (17.24 lbs)
Shipping Weight 8.69 kg (19.16 lbs)
Included Accessories Yoke bracket
Packed Quantity 2
Finish
Colour White (Ral 9003)
Black (Ral 9004)

Additional information

Weight 17.24 lbs
Dimensions 12.06 × 10.24 × 16.13 in
