Description
Supports High-Resolution Recording and Playback
Supports high-resolution recording and playback up to 96 kHz/24-bit using SD cards and USB flash drives. Compatible with SDXC cards and USB flash drives up to 512 GB, enabling flexible media operation for applications such as long-duration recording and playback of large-capacity content.

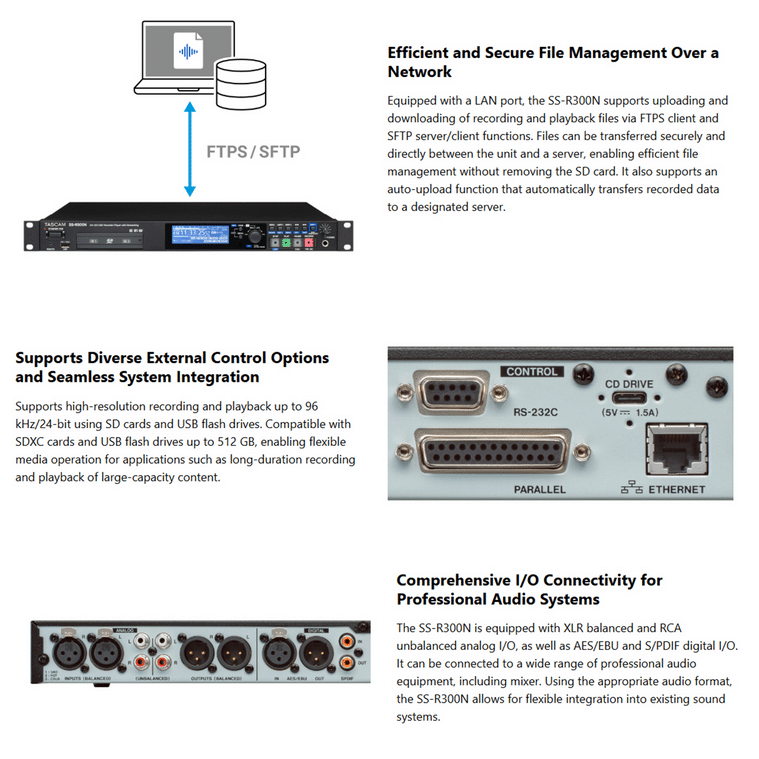

Efficient and Secure File Management Over a Network
Equipped with a LAN port, the SS-R300N supports uploading and downloading of recording and playback files via FTPS client and SFTP server/client functions. Files can be transferred securely and directly between the unit and a server, enabling efficient file management without removing the SD card. It also supports an auto-upload function that automatically transfers recorded data to a designated server.
Supports Diverse External Control Options and Seamless System Integration
The SS-R300N is equipped with multiple external control interfaces, including Ethernet (RJ-45), RS-232C serial (D-sub 9-pin), and parallel (D-sub 25-pin) connections. It also supports the Open Sound Control (OSC) protocol which enables seamless integration with a wide range of devices, including DAWs, lighting systems, and video systems. In addition, compatibility with the previous SS-R250N and SS-CDR250N models is maintained, allowing smooth system upgrades while preserving existing media assets and operating environments.

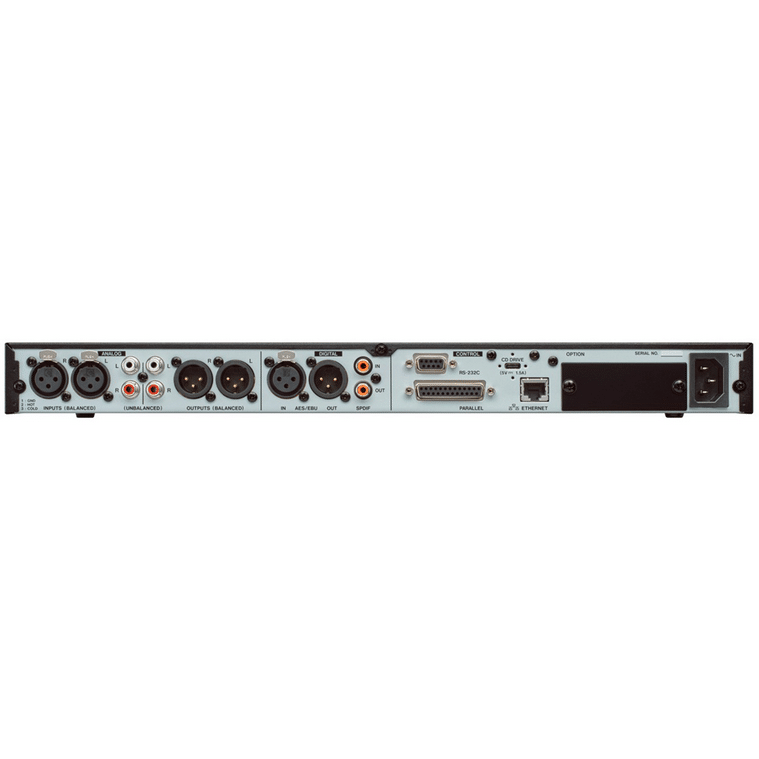

Comprehensive I/O Connectivity for Professional Audio Systems
The SS-R300N is equipped with XLR balanced and RCA unbalanced analog I/O, as well as AES/EBU and S/PDIF digital I/O. It can be connected to a wide range of professional audio equipment, including mixer. Using the appropriate audio format, the SS-R300N allows for flexible integration into existing sound systems.

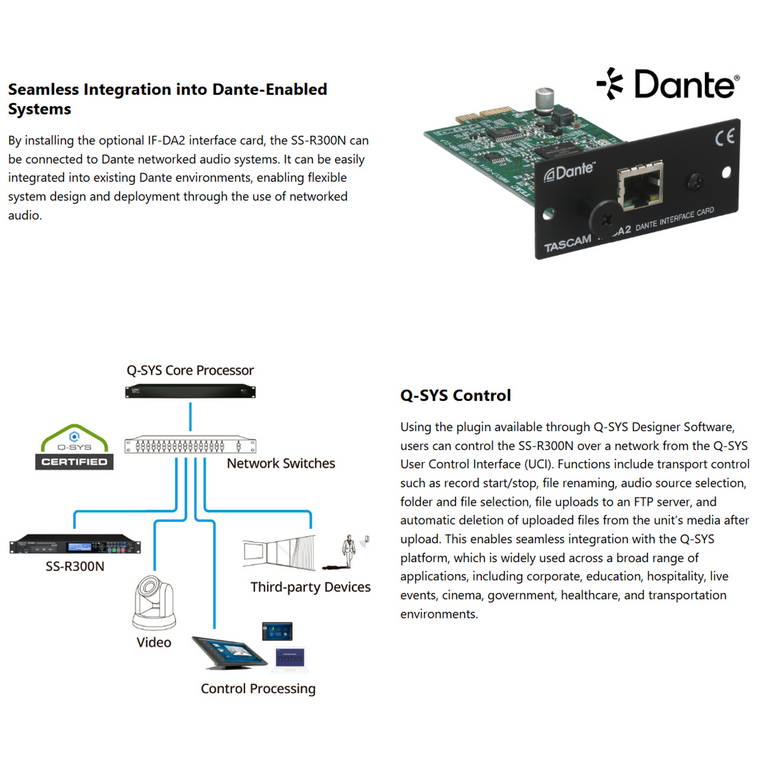

Seamless Integration into Dante-Enabled Systems
By installing the optional IF-DA2 interface card, the SS-R300N can be connected to Dante networked audio systems. It can be easily integrated into existing Dante environments, enabling flexible system design and deployment through the use of networked audio.
Q-SYS Control
Using the plugin available through Q-SYS Designer Software, users can control the SS-R300N over a network from the Q-SYS User Control Interface (UCI). Functions include transport control such as record start/stop, file renaming, audio source selection, folder and file selection, file uploads to an FTP server, and automatic deletion of uploaded files from the unit’s media after upload. This enables seamless integration with the Q-SYS platform, which is widely used across a broad range of applications, including corporate, education, hospitality, live events, cinema, government, healthcare, and transportation environments.
Offline Editing of Playlists and Timer Event Lists
With the dedicated TASCAM Playlist Editor software, playlists and timer event lists can be created and edited on a computer. The software also supports conversion of MP3 and AAC files to WAV format, as well as sample rate and bit depth conversion of WAV files, helping streamline content preparation and system setup before deployment.
Support for External CD Drives and Multiple Audio Formats
By connecting a compatible third-party external USB CD drive, the SS-R300N can play audio CDs. It also supports AAC file playback, providing flexible audio operation across a variety of audio source formats.
Customizable Operation to Suit Different Applications
The SS-R300N features four USER buttons on the front panel, allowing frequently used functions to be assigned as desired. It also supports function assignment for the PARALLEL I/O (external control I/O), enabling a flexible operating environment tailored to specific applications and system requirements.
